Schneider UPS GVL500KDS Galaxy VL UPS 500 KW 400/480V Start-up 5x8 APC UPS Power Supply

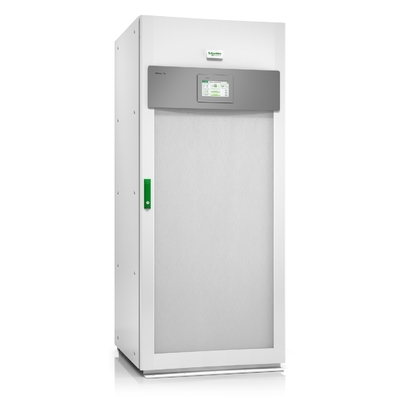

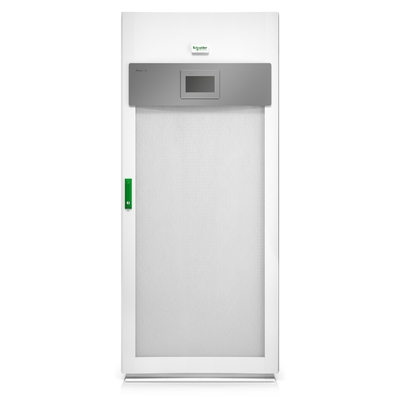

Large Image : Schneider UPS GVL500KDS Galaxy VL UPS 500 KW 400/480V Start-up 5x8 APC UPS Power Supply

Product Details:

Place of Origin:	Philippines
Brand Name:	APC
Model Number:	GVL500KDS

Contact Now

Detailed Product Description

Battery Type:	Lead Acid Battery	Phase:	Three Phase
Protection:	Lightning	Weight:	992kg
Type:	On-line	Application:	Computer/networking
Electric Energy:	400 Wh

Products Description

Specification

Other Output Voltage	400 V
Other Output Voltage		480 V
Rated power in W	500 kW
rated power in VA	500 kVA
Battery type	Li-Ion (Lithium-Ion)
		VRLA
		Ni-Cd (Nickel-Cadmium)
Range of product	Galaxy VL
Range compatibility	Galaxy VL
Batteries & Runtime
Efficiency	View Efficiency Graph
Discharge battery voltage	384 V
General
Number of power module	10
Redundant	No
Product or component type	Uninterruptible power supply (UPS)
Physical
Colour	White
Height	197 cm
Width	85 cm
Depth	92.5 cm
Net weight	778 kg
Input
Network frequency	40...70 Hz
Max short time withstand current	65 kA
Input harmonic distortion	Less than 5 % for full load
Load power factor	0.5 leading to 0.5 lagging without derating
Output
Maximum configurable power in W	500 kW
Crest factor	3
Output overload operation	10 minutes at 125% and 60 seconds at 150%
Maximum configurable power in VA	500 kVA
Conformance
Product certifications	IEC 62040-1-1
		UL 1778 5th edition
		IEC 62040-2
		IEC 62040-3
		VFI-SS-111
		FCC Class A
		ENERGY STAR V2.0 (USA)
Standards	IEC 60721-4-2 level 2M2
Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 % non-condensing
Operating altitude	0...3000 m
Ambient air temperature for storage	-25…55 °C
Storage Relative Humidity	10…80 % non-condensing
IP degree of protection	IP20
Communications & Management
control panel	Touch screen LCD user interface
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2145 mm
Package 1 Width	1100 mm
Package 1 Length	950 mm
Package 1 Weight	992 kg
